Mini PCI-E to PCI-E Adapter User’s Manual

Page 3

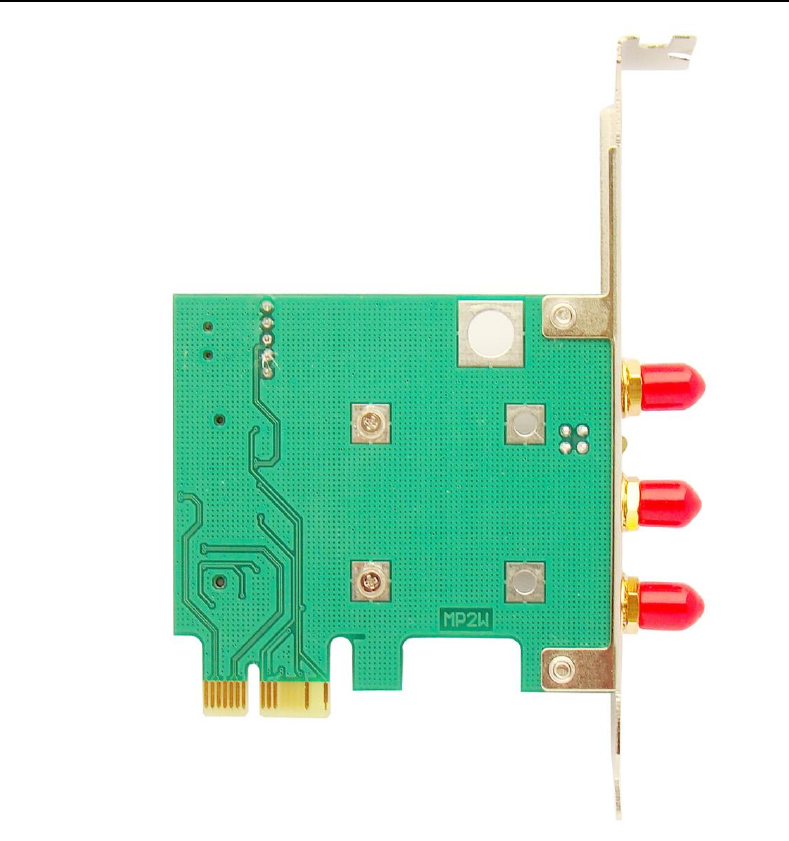

Figure-2 Mini PCI-E to PCI-E Adapter (back)

LED State:

1. D1(Yellow):

When the user plugs mini card into Mini PCI-E to PCI-E Adapter, LED D1 (Y) is

on. It shows the mini card has been identified by system. When D1 flickers, it

shows the device connectivity ok and it works normally.

2. D2 (Green):

When LED D2 (G) is on, it shows the normal operating voltage of mini card.
